Labcut 5000® Series

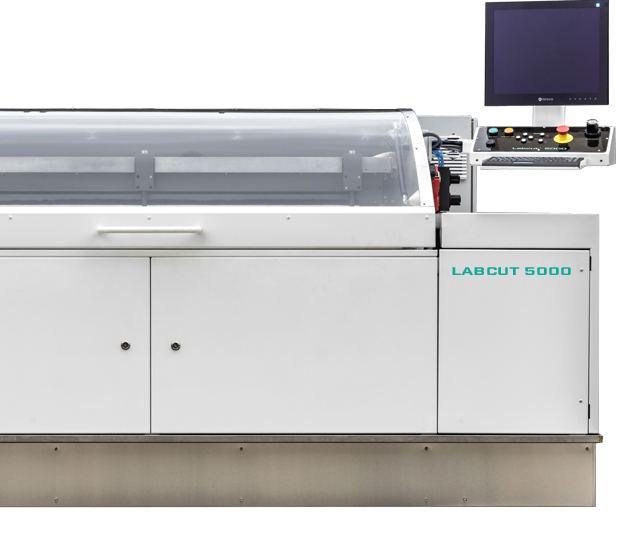

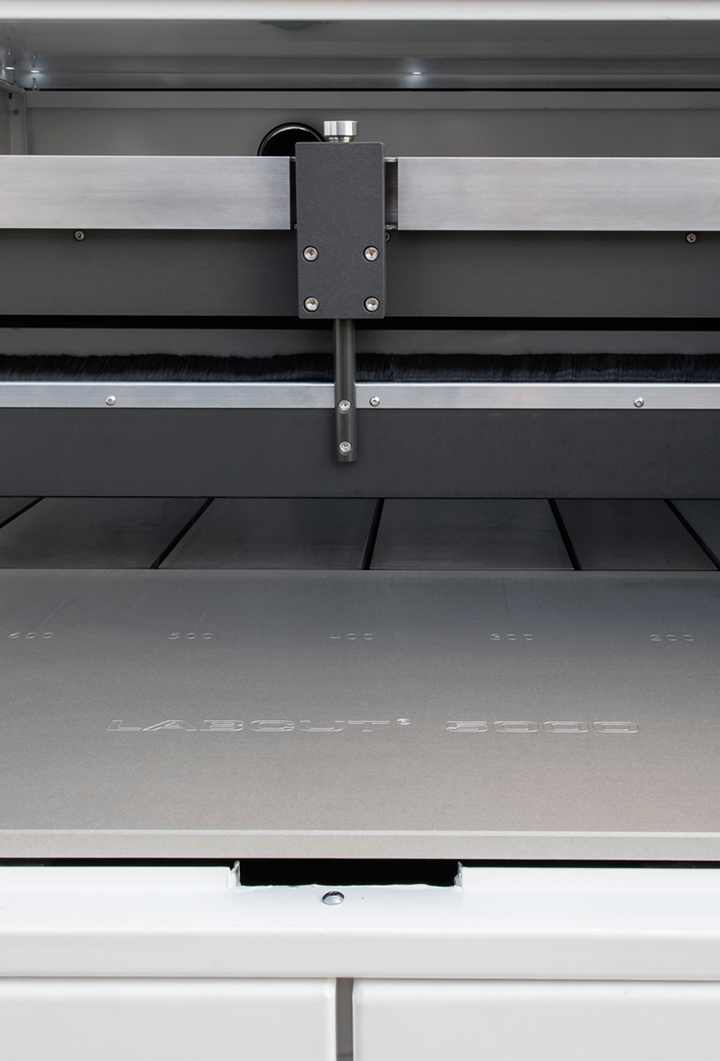

The Labcut 5000® advanced composite plate saws achieve precise cutting in a diverse range of materials to prepare highly accurate composite test specimens.

The Labcut 5000® Series saws cut up to 55 mm material thickness and are available in three standard models, accommodating cleared panel sizes:

  • 600 x 600 mm (2 x 2 ft)
  • 1250 x 600 mm (4 x 2 ft)
  • 1250 x 1250 mm (4 x 4 ft)

Customized special order units can be designed to fit the specific cutting requirements including greater cut depths.

Advanced Composite Plate Saw Models

Learn about the Labcut 5000®: Features and Specifications

Item No. Sheet Size Sheet Thickness Cutting Speed Power
50282 600 x 600 mm
(2 x 2 ft)		 55 mm
(2.16 in)		 250 mm, 305 mm,
0.1-40 mm/s
(10 in, 12 in)		 380-440 V
3 Phase + Earth, 3.6 hp
50482 1250 x 600 mm
(4 x 2 ft)		 55 mm
(2.16 in)		 250 mm, 305 mm,
0.1-40 mm/s
(10 in, 12 in)		 380-440 V
3 Phase + Earth, 3.6 hp
50484 1250 x 1250 mm
(4 x 4 ft)		 55 mm
(2.16 in)		 250 mm, 305 mm,
0.1-40 mm/s
(10 in, 12 in)		 380-440 V
3 Phase + Earth, 3.6 hp

Mechanical Test Specimens & Optical Sample Preparation for Composite Materials

Typical test specimen capabilities include:

  • Tensile – ISO527 Parts 1, 4 & 5, EN2597 & ASTM D3039
  • In-Plane Shear – ISO14129, EN6031 & ASTM D3518
  • Compression – ISO14126, EN2850, ASTM D695, ASTM D3410
  • Short Beam ILSS – ISO14130, ASTM D2344, EN 2563
  • Lap Shear ILSS – ASTM D3846
  • Flexural – ISO14125 & ASTM D790
  • OHT, OHC – ASTM D5766 & ASTM D6484 Respectively
  • Flatwise Tensile – BS EN 2243-4 & ASTM C297
  • Compression Strength After Impact – ASTM D7137 & Boeing l BSS 7260
  • Fracture Toughness Mode 1 and Mode II – ASTM D5528 & ISO15114 Respectively
  • Lap Shear – BS EN 2243-1, ASTM D1002, ASTM D3163, ASTM D5868, ASTM D3528
  • Boeing and Airbus specific test and variations on common tests.

In all of these tests and particularly compression testing, the preparation of accurate rectangular test specimens from larger sheets is very important. Extec offers a range of Extec Labcut 5000® models for this preparation depending on the size of sheet and accuracy required.

testing worktable
