labcut 5000 machine

Precision Cutting of Composite Materials

Designed specifically for cutting and testing composite materials with automation that saves time and improves results. The Labcut 5000® Series CNC fence allows multiple specimen cuts without user intervention.

With its stainless steel internal cladding and panel work, the Labcut 5000® series is designed to withstand harsh working environments. Large access doors make it is easy to clean and maintain. The rugged chassis provides a stable platform for highly accurate cutting.

Designed With The End User in Mind

A completely new and upgraded design is your solution to accurate
and repeatable test specimens.

Prev Next
enclosed frame
Fully Enclosed Frame
slatted worktable
Slatted Work Table
stainless steel chamber
Stainless Steel Work Chamber
laser engrave worktable
Simple User Interface
enclosed frame
Fully Enclosed Frame
slatted worktable
Slatted Work Table
stainless steel chamber
Stainless Steel Work Chamber
laser engraved worktable
Simple User Interface

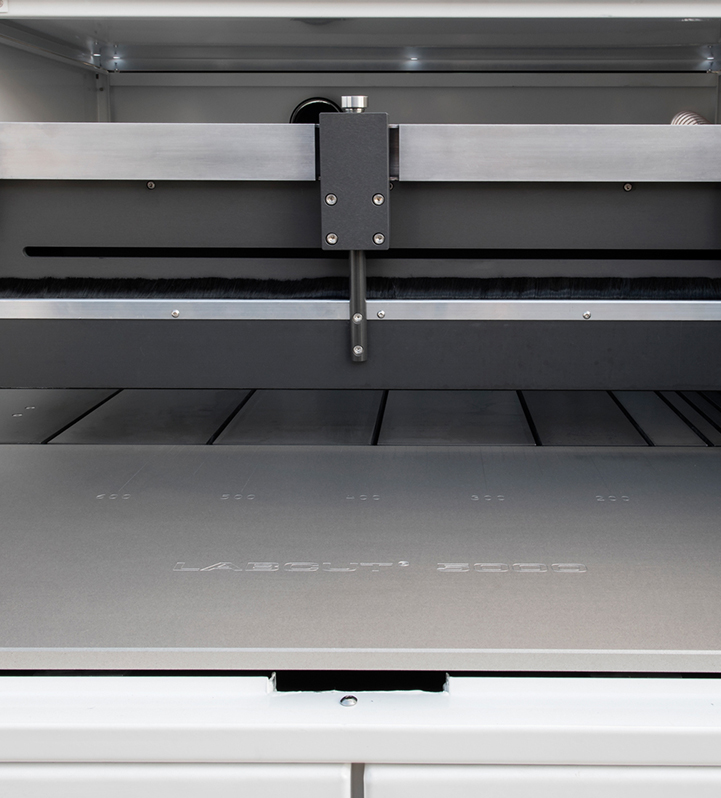

worktable with fitted pneumatic sheet clamps

CNC Material Fence

  • Pneumatic sheet clamps in-built for securing the laminate
  • Automatic positioning for accurate cutting
  • Dual driven for perpendicularity
  • Repeatable
worktable with fitted pneumatic sheet clamps
3.6hp cutting carriage and traverse

Cross-Cut Carriage

  • Rigidity of X-axis assembly provides superior surface finish
  • Clear working area with cutting head below the table
  • Easy blade change
  • Servo-driven ball screw provides smooth and accurate cutting feed

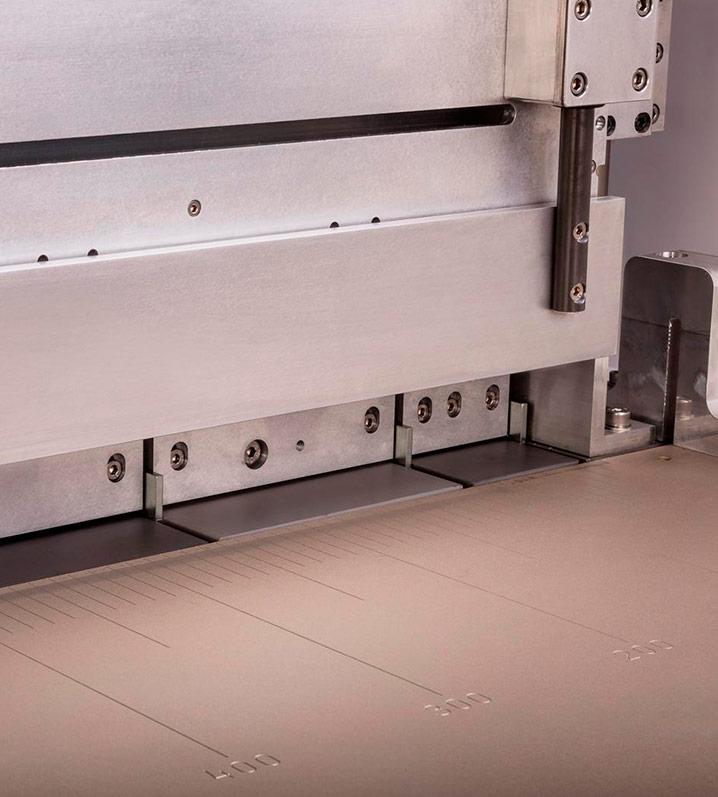

Bar Clamp with Coolant

  • Both laminate and cut specimen are secured during the cutting process
  • Automatic operation
  • Constant flood cooling across entire cut length
  • Bag-based filter system for easy maintenance

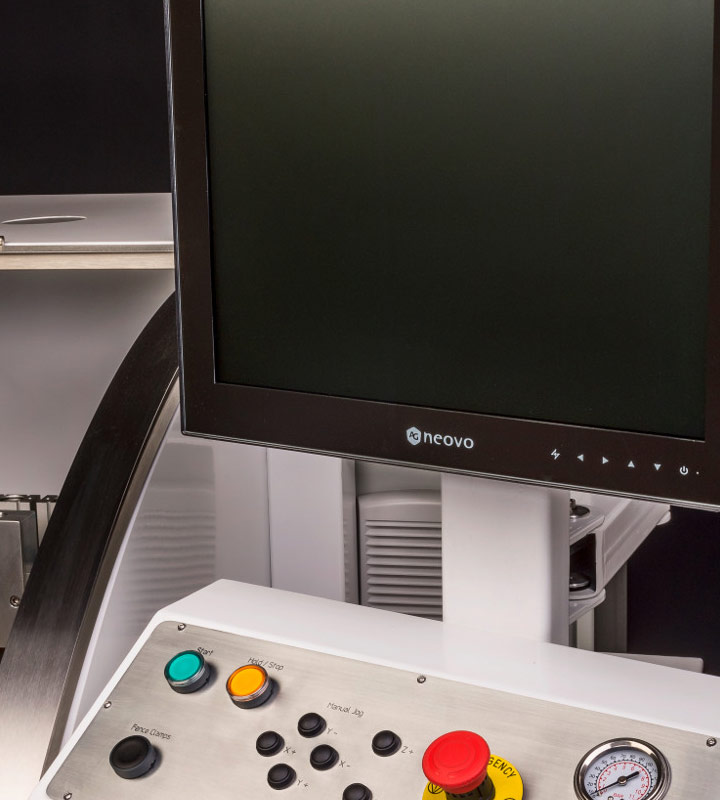

computer control system

User Interface Control System

  • Conversational CNC permits ease of use
  • Part-programmable for automatic machining
  • Material parameters store best feed and spindle speeds for each laminate
  • Remote support available
computer control system
clean environment

Safe Working Environment

  • Fully enclosed work area
  • Connection to external dust extractor
  • CE marked to relevant standards
  • Fully interlocked system
