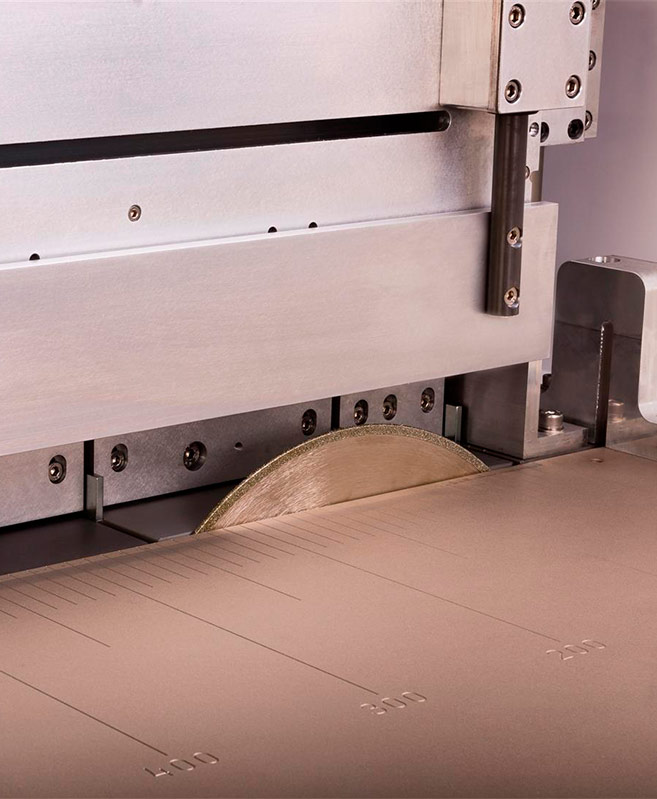

diamond cutting wheel

Precision Cutting

For optimal performance and precision cutting, we supply a range of recommended cutting blades, coolants and filter bags.

  • Using the appropriate cutting wheel is critical for precision cutting and accuracy.
  • The use of cutting fluid* is always recommended for the highest quality cut surface.

We've developed a range of blades to cover cutting requirements across a wide variety of laminates. Additionally, while our general purpose blades are suitable for most needs, we offer custom-designed blades to achieve the best surface finish in specific material cutting applications.

*In some cases the use of lubricant is not possible so we've developed a range of continuous rim (diamond) cutting wheels for both wet and dry general purpose cutting.

Wet Cutting, High Concentration – General Purpose

Developed for use with composite materials when using a lubricant, this metal bonded
diamond cutting wheel produces a high quality surface finish and minimizes surface defects.

Item No. Wheel Diameter Wheel Thickness Arbor Hole
52208 ≈200 mm (8 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)
52210 ≈250 mm (10 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)
52212 ≈305 mm (12 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)
52214 ≈350 mm (14 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)

Wet Cutting, High Concentration – Aluminum

Developed for use in specific aluminum applications when using a lubricant, this metal bonded diamond
cutting wheel produces a high quality surface finish and minimizes surface defects.

Item No. Wheel Diameter Wheel Thickness Arbor Hole
52239 ≈200 mm (8 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)
52240 ≈250 mm (10 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)
52242 ≈300 mm (12 in) ≈2.8 mm (0.111 in) ≈32 mm (1.26 in)

Dry Cutting, High Concentration – General Purpose

Developed for use with composite materials when it is not possible to use lubricant.

Item No. Wheel Diameter Wheel Thickness Arbor Hole
52218 ≈200 mm (8 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)
52220 ≈250 mm (10 in) ≈2.8 mm (.111 in) ≈32 mm (1.26 in)
52222 ≈305 mm (12 in) ≈2.8 mm (.111 in) ≈32 mm (1.26 in)
52224 ≈350 mm (14 in) ≈2.8 mm (.111 in) ≈32 mm (1.26 in)

Wet Cutting, High Concentration – Aramid

Developed for use with aramid materials when using a lubricant, this metal bonded diamond
cutting wheel produces a high quality surface finish and minimizes surface defects.

Item No. Wheel Diameter Wheel Thickness Arbor Hole
52228 ≈200 mm (8 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)
52230 ≈250 mm (10 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)
52232 ≈300 mm (12 in) ≈1.9 mm (0.075 in) ≈32 mm (1.26 in)

Accessories and Related Consumables

Everything you need for supporting your high precision cutting machine and processes.

Item No. Unit Size Description
50370 gal (3.8 l) 1 gal (3.8 l) EXTEC Synthetic Soluble Fluid for Recirculating Tank/Paper Band Filter Unit gal (3.8 l)
50371 5 gal (19 l) 5 gal (19 l) EXTEC Synthetic Soluble Fluid for Recirculating Tank/Paper Band Filter Unit 5 gal (19 l)
50323 Roll N/A EXTEC Paper Band Filter Replacement Roll for Extec Paper Band Filter Unit 50322 & 50325
50373 Roll N/A EXTEC Paper Band Filter Replacement Roll for Extec Paper Band Filter Unit 50372
50383 Pkg/3 N/A EXTEC Felt (10µ) Filter Replacement for 50382
52045 Each N/A Extec Dressing Stick for Labcut 5000® Diamond Wheels
